Outdoor fixed LED display 2
Product introduction
Outdoor fixed LED display, with high brightness, low power consumption and high waterproof level, it's popular in Stadiums, The commercial plazas, Railway station squares, Airports, Pedestrian Streets, Bus stations, Metros, Leisure wharfs, Exhibition halls, etc;

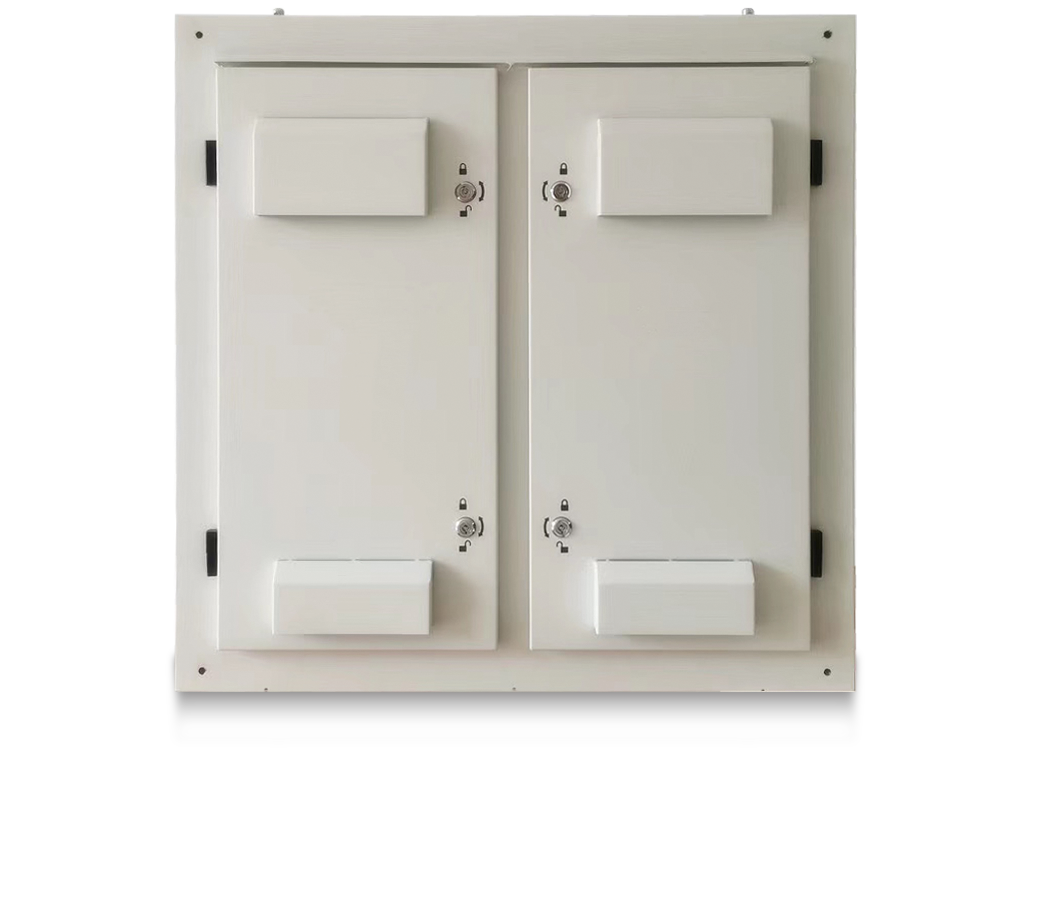

Light and slim seamless connection design die-casting aluminum cabinet, it’s only 90mm in thickness which can achieve better wall mounted effect The cabinet is light, it’s only 30kg/sqm which is labor saving;
Front & rear maintenance optional, front service using waterproof module, reducing the risk of water ingress into the module, modules are locked with two die-casting lock which screw 180 ° to locked the module firmly;
High IP rating & perfect heat dissipation, IP65 water resistance and safety performance. having fans inside, which can improve the heat dissipation efficiently to ensure good and stable play performance;
Fast assembling, there are 2 locating pins on the cabinet top and have locating slots on the side of the cabinet, which are for quick positioning during installation to make it more quickly and conveniently. There are two sets fast locks on cabinet upside and downside and snap-lock on left and right side which can splice two cabinets quickly.
Light and slim seamless connection design die-casting aluminum cabinet, it’s only 90mm in thickness which can achieve better wall mounted effect The cabinet is light, it’s only 30kg/sqm which is labor saving;
Front & rear maintenance optional, front service using waterproof module, reducing the risk of water ingress into the module, modules are locked with two die-casting lock which screw 180 ° to locked the module firmly;
High IP rating & perfect heat dissipation, IP65 water resistance and safety performance. having fans inside, which can improve the heat dissipation efficiently to ensure good and stable play performance;
Fast assembling, there are 2 locating pins on the cabinet top and have locating slots on the side of the cabinet, which are for quick positioning during installation to make it more quickly and conveniently. There are two sets fast locks on cabinet upside and downside and snap-lock on left and right side which can splice two cabinets quickly.
SPECIFICATIONS
| Type | OFL 4 | OFL 5 | OFL 6 | OFL 6.6 | OFL 8 | OFL 10 |
| Pixel Pitch (mm) | P4 | P5 | P6 | P6.67 | P8 | P10 |
| LEDs | SMD1921 | SMD2525 | SMD3535 | SMD3535 | SMD3535 | SMD3535 |
| Pixel Density (dots/m2) | 62,500dots/m2 | 40,000dots/m2 | 27,777dots/m2 | 22,477dots/m2 | 15,625dots/m2 | 10,000dots/m2 |
| Module Size (mm) | 320 x 160mm | 320 x 160mm | 192 x 192mm | 320 x 160mm | 320 x 160mm | 320 x 160mm |
| Cabinet Size (mm) | 960 x 960mm | 960 x 960mm | 960 x 960mm | 960 x 960mm | 960 x 960mm | 960 x 960mm |
| Cabinet Weight (Kg) | 38 | 38 | 38 | 38 | 38 | 38 |
| Cabinet Material | Steel | Steel | Steel | Steel | Steel | Steel |
| Service method | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| Brightness (cd/m2) | ≥5500 | ≥5500 | ≥5500 | ≥5500 | ≥6000 | ≥6000 |
| Horizontal/Vertical Viewing Angle (°) | H140/V120 | H140/V120 | H140/V120 | H140/V120 | H140/V120 | H140/V120 |
| Grey Scale (bit) | 14 | 14 | 14 | 14 | 14 | 14 |
| Refresh Rate (Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
| Frame Rate (Hz) | ≥ 60 | ≥ 60 | ≥ 60 | ≥ 60 | ≥ 60 | ≥ 60 |
| Avg Power Consumption (W/m²) | 320 | 320 | 260 | 240 | 280 | 300 |
| Max Power Consumption (W/m²) | 850 | 850 | 742 | 700 | 800 | 840 |
| Operating Temperature | —30℃ ～+60 ℃ | —30℃ ～+60 ℃ | —30℃ ～+60 ℃ | —30℃ ～+60 ℃ | —30℃ ～+60 ℃ | —30℃ ～+60 ℃ |
| Humidity | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Protection Grade | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Color Temperature | 6500k+/-500 | 6500k+/-500 | 6500k+/-500 | 6500k+/-500 | 6500k+/-500 | 6500k+/-500 |
| Input Voltage | AC100-240V/50/60Hz | AC100-240V/50/60Hz | AC100-240V/50/60Hz | AC100-240V/50/60Hz | AC100-240V/50/60Hz | AC100-240V/50/60Hz |
| Lifespan | >100000 h | >100000 h | >100000 h | >100000 h | >100000 h | >100000 h |
