Indoor fixed LED display 1
Product introduction
Indoor fixed LED display, amazing display effect with high resolution, high brightness, low power consumption popular in boardroom, specialty stores, meeting rooms, monitoring and controlling center, exhibition, TV show, shopping malls, stations, hotels;

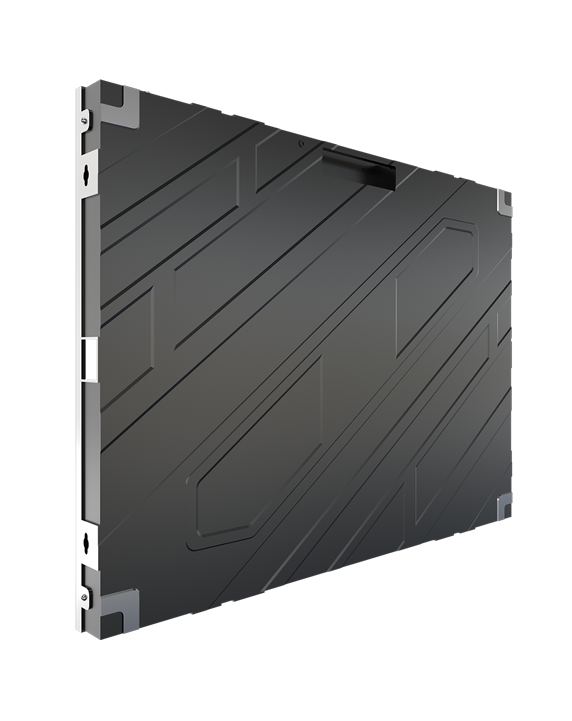

Die-casting aluminum cabinet, high precision CNC workmanship processing precision < 0.1mm; seamless connection design;
Light and slim cabinet, it’s only 90mm in thickness which can achieve better wall mounted effect The cabinet is light, it’s only 28kg/sqm which is labor saving;
Front maintenance, each module is equipped with magnet, which connect the module onto the cabinet structure;
Easy maintenance, pulling out the two modules nearby and loosen the screws; then could get out the receiving card, power and HUB;
Fast assembling, there are 2 locating pins on the cabinet top and have locating slots on the side of the cabinet, which are for quick positioning during installation to make it more quickly and conveniently. There are two sets fast locks on cabinet upside and downside and snap-lock on left and right side which can splicing two cabinets quickly.
Die-casting aluminum cabinet, high precision CNC workmanship processing precision < 0.1mm; seamless connection design;
Light and slim cabinet, it’s only 90mm in thickness which can achieve better wall mounted effect The cabinet is light, it’s only 28kg/sqm which is labor saving;
Front maintenance, each module is equipped with magnet, which connect the module onto the cabinet structure;
Easy maintenance, pulling out the two modules nearby and loosen the screws; then could get out the receiving card, power and HUB;
Fast assembling, there are 2 locating pins on the cabinet top and have locating slots on the side of the cabinet, which are for quick positioning during installation to make it more quickly and conveniently. There are two sets fast locks on cabinet upside and downside and snap-lock on left and right side which can splicing two cabinets quickly.
SPECIFICATIONS
| Type | IF 2 | IF 2.5 | IF 3 |
| Pixel Pitch (mm) | 2 | 2.5 | 3 |
| LEDs | SMD1515 | SMD2020 | SMD2020 |
| Pixel Density (dots/m2) | 250,000 | 160,000 | 111,111 |
| Module Size (mm) | 256 x 128 | 320 x 160 | 192 x 192 |
| Cabinet Size (mm) | 640 x 480 | 640 x 480 | 640 x 480 |
| Cabinet Weight (Kg) | 7.5 | 8 | 8 |
| Cabinet Material | Aluminum die casting | Aluminum die casting | Aluminum die casting |
| Service method | Front/Rear | Front/Rear | Front/Rear |
| Brightness (cd/m2) | ≥1000 cd/m2 | ≥1200cd/m2 | ≥1200cd/m2 |
| Horizontal/Vertical Viewing Angle (°) | H160/V160 | H160/V160 | H160/V160 |
| Grey Scale (bit) | 14Bit | 14Bit | 14Bit |
| Refresh Rate (Hz) | ≥2880 Hz | ≥2880 Hz | ≥2880 Hz |
| Frame Rate (Hz) | ≥ 60 Hz | ≥ 60 Hz | ≥ 60 Hz |
| Avg Power Consumption (W/m²) | 200 | 180 | 160 |
| Max Power Consumption (W/m²) | 560 | 500 | 480 |
| Operating Temperature | —30℃ ～+60 ℃ | —30℃ ～+60 ℃ | —30℃ ～+60 ℃ |
| Humidity | 10%~90% | 10%~90% | 10%~90% |
| Protection Grade | IP31 | IP31 | IP31 |
| Color Temperature | 6500k+/-500 | 6500k+/-500 | 6500k+/-500 |
| Input Voltage | AC100-240V/50/60Hz | AC100-240V/50/60Hz | AC100-240V/50/60Hz |
| Lifespan | >100000 h | >100000 h | >100000 h |
