Rental LED display 1
Product introduction

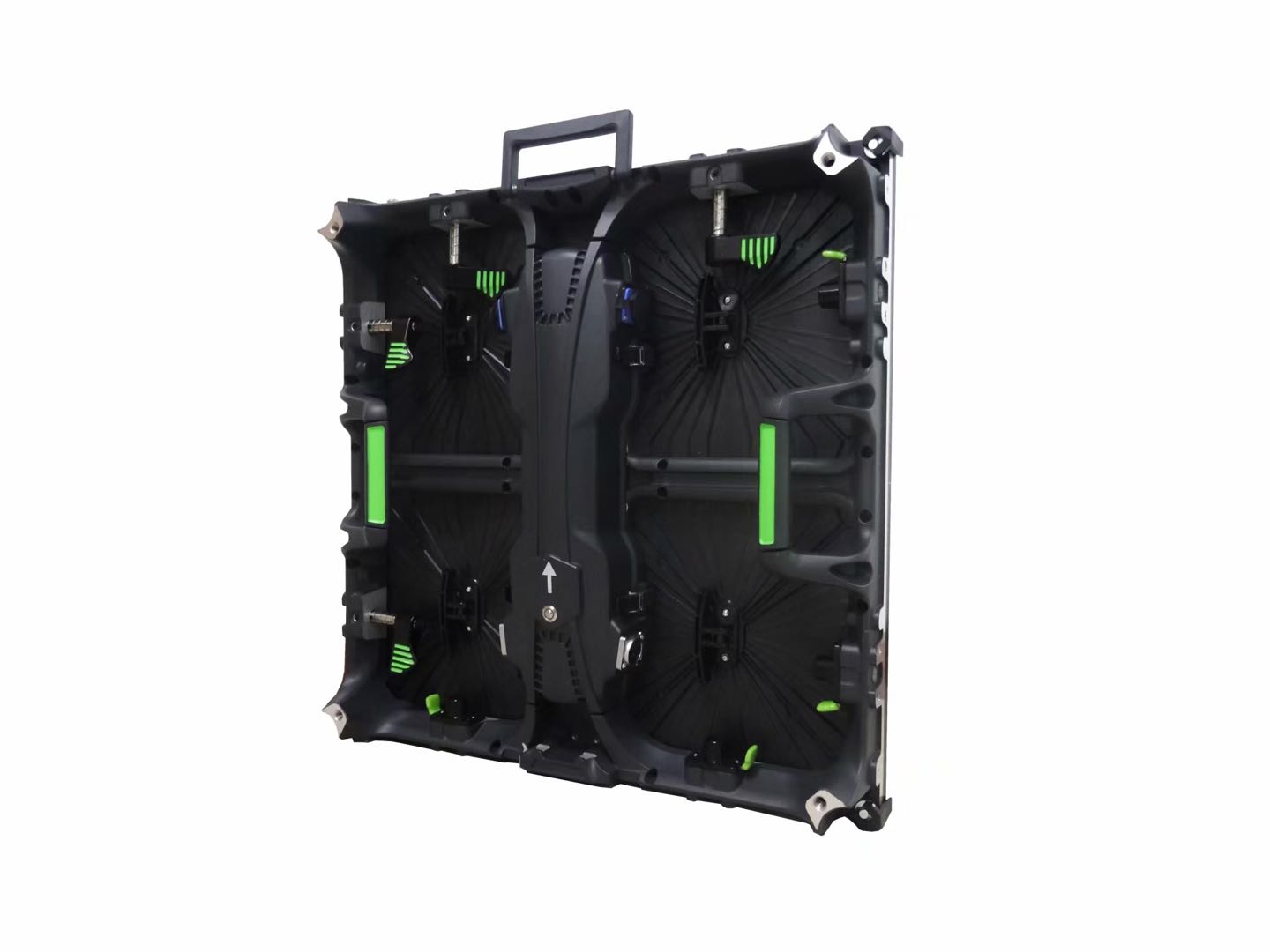

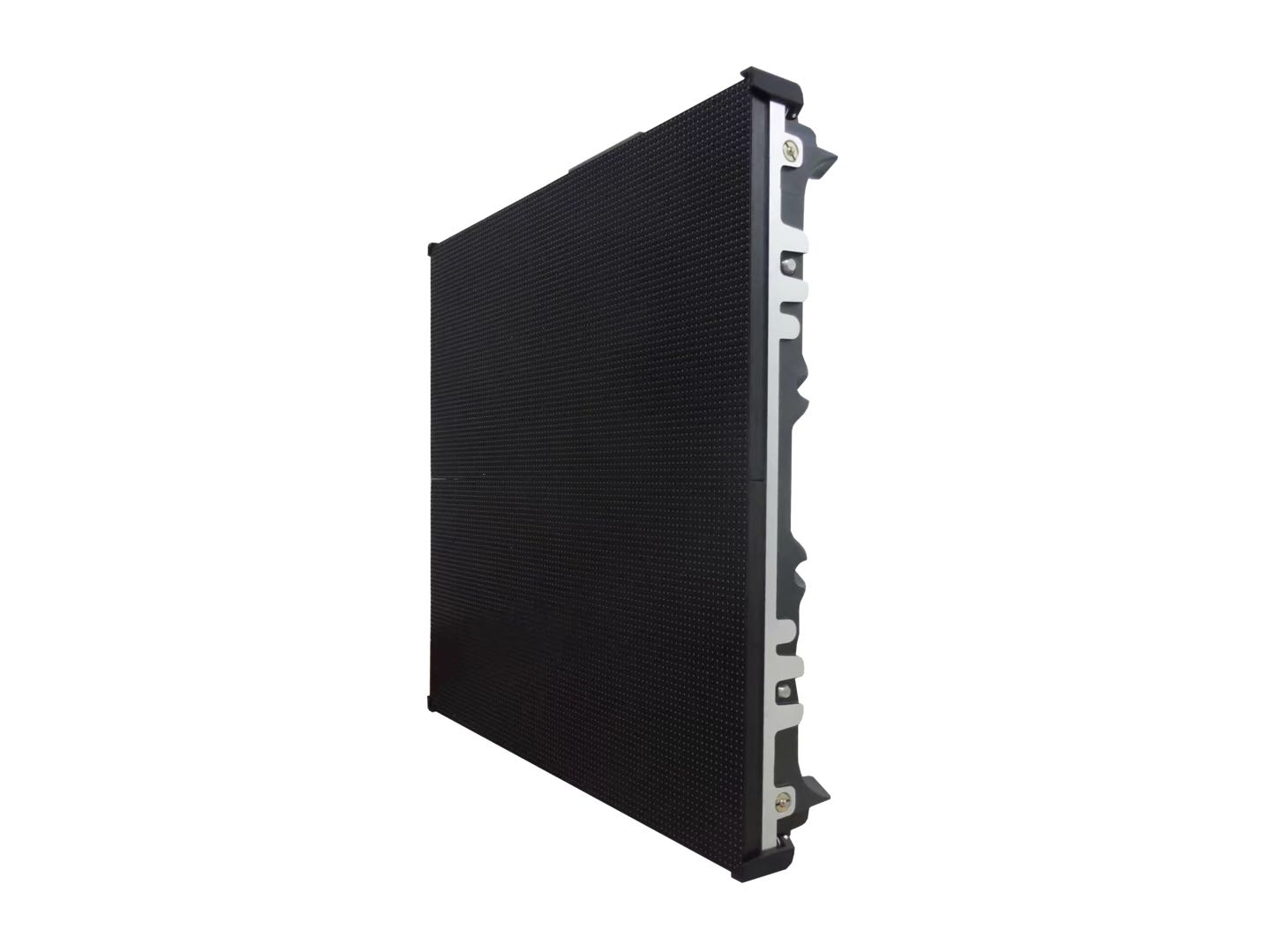

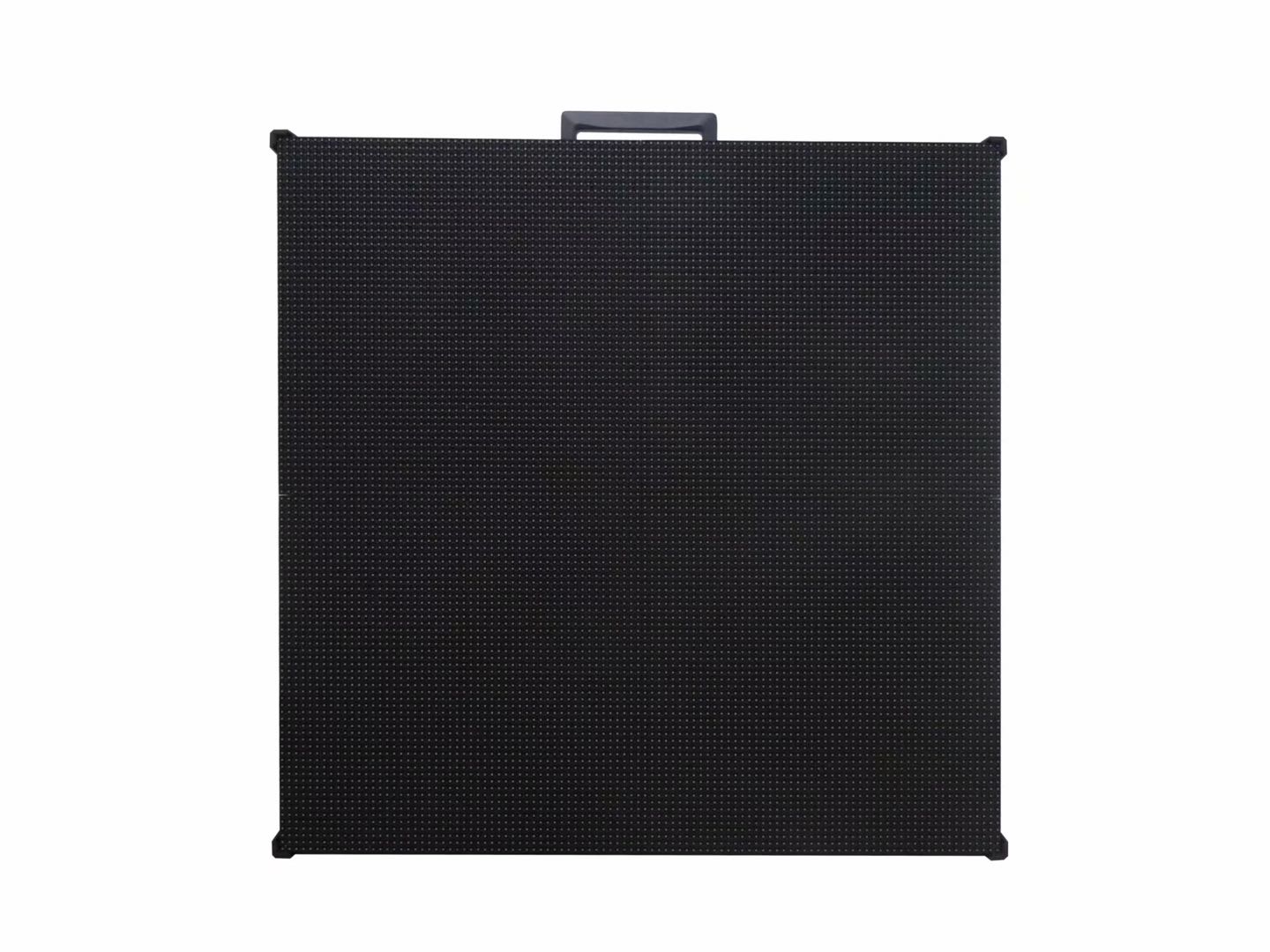

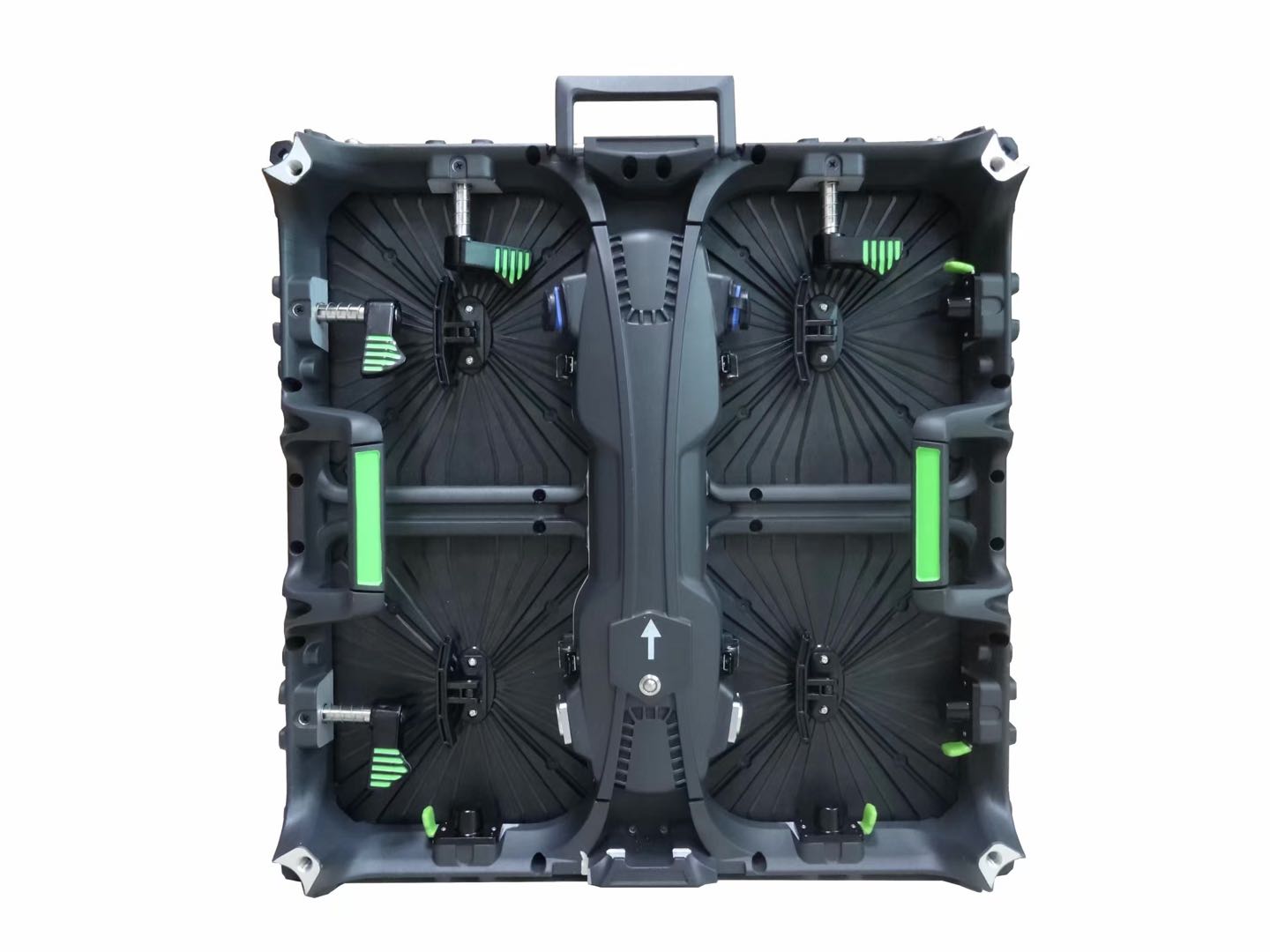

The die-casting aluminum panel using modular design, modules and power box can all be maintained conveniently from the front or rear according to requirements;
Support mismatch splicing, inspire unlimited creativity R series panels adopted symmetrical double lock design, simple achieve vertical and horizontal mismatch splicing with half panel;
The design of anti-bump and corner protection will effectively prevent module from bumping damage;
Concave and convex curving capabilities provide a larger field of view and a more immersive experience (Concave angle: 0°/2.5°/5°/7.5°, Convex Angle: -7.5°/-5°/-2.5°/0°);
The design enables fast & simple installation for both hanging & stacking applications. Stacking installation, 20pcs height is allowed; Hanging installation, 20pcs height is acceptable.
Support mismatch splicing, inspire unlimited creativity R series panels adopted symmetrical double lock design, simple achieve vertical and horizontal mismatch splicing with half panel;
The design of anti-bump and corner protection will effectively prevent module from bumping damage;
Concave and convex curving capabilities provide a larger field of view and a more immersive experience (Concave angle: 0°/2.5°/5°/7.5°, Convex Angle: -7.5°/-5°/-2.5°/0°);
The design enables fast & simple installation for both hanging & stacking applications. Stacking installation, 20pcs height is allowed; Hanging installation, 20pcs height is acceptable.
SPECIFICATIONS
| Type | Ri 1.9 | Ri 2.6 | Ri 2.9 | Ri 3.9 |
| Pixel Pitch (mm) | 1.9 | 2.6 | 2.9 | 3.9 |
| LEDs | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Pixel Density (dots/m2) | 262,114 | 147,456 | 112,896 | 65,536 |
| Module Size (mm) | 250*250 | 250*250 | 250*250 | 250*250 |
| Cabinet Size (mm) | 500*500 | 500*500 | 500*500 | 500*500 |
| Cabinet Weight (Kg) | 7 | 7 | 7 | 7 |
| Cabinet Material | Aluminum die casting | Aluminum die casting | Aluminum die casting | Aluminum die casting |
| Service method | Rear | Rear | Rear | Rear |
| Brightness (cd/m2) | 1000 | 1200 | 1200 | 1200 |
| Horizontal/Vertical Viewing Angle (°) | H140/V120 | H140/V120 | H140/V120 | H140/V120 |
| Grey Scale (bit) | 14 | 14 | 14 | 14 |
| Refresh Rate (Hz) | ≥2880 | ≥2880 | ≥2880 | ≥3840 |
| Frame Rate (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
| Avg Power Consumption (W/m²) | 180 | 180 | 180 | 180 |
| Max Power Consumption (W/m²) | 560 | 560 | 560 | 560 |
| Operating Temperature | —30℃ ～+60 ℃ | —30℃ ～+60 ℃ | —30℃ ～+60 ℃ | —30℃ ～+60 ℃ |
| Humidity | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Protection Grade | IP31 | IP31 | IP31 | IP31 |
| Color Temperature | 6500k ±500 | 6500k ±500 | 6500k ±500 | 6500k ±500 |
| Input Voltage | AC100-240V/50/60Hz | AC100-240V/50/60Hz | AC100-240V/50/60Hz | AC100-240V/50/60Hz |
| Lifespan | >100000 h | >100000 h | >100000 h | >100000 h |
| Type | Ro 2.9 | Ro 3.9 | Ro 4.8 |
| Pixel Pitch (mm) | 2.9 | 3.9 | 4.8 |
| LEDs | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density (dots/m2) | 112,896 | 65,536 | 43,264 |
| Module Size (mm) | 250*250 | 250*250 | 250*250 |
| Cabinet Size (mm) | 500*500 | 500*500 | 500*500 |
| Cabinet Weight (Kg) | 8 | 8 | 8 |
| Cabinet Material | Aluminum die casting | Aluminum die casting | Aluminum die casting |
| Service method | Rear | Rear | Rear |
| Brightness (cd/m2) | ≥5000 | ≥4500 | ≥4500 |
| Horizontal/Vertical Viewing Angle (°) | H140/V120 | H140/V120 | H140/V120 |
| Grey Scale (bit) | 14 | 14 | 14 |
| Refresh Rate (Hz) | ≥2880 | ≥2880 | ≥2880 |
| Frame Rate (Hz) | ≥60 | ≥60 | ≥60 |
| Avg Power Consumption (W/m²) | 220 | 220 | 220 |
| Max Power Consumption (W/m²) | 640 | 640 | 640 |
| Operating Temperature | —30℃ ～+60 ℃ | —30℃ ～+60 ℃ | —30℃ ～+60 ℃ |
| Humidity | 10%~90% | 10%~90% | 10%~90% |
| Protection Grade | IP65 | IP65 | IP65 |
| Color Temperature | 6500k ±500 | 6500k ±500 | 6500k ±500 |
| Input Voltage | AC100-240V/50/60Hz | AC100-240V/50/60Hz | AC100-240V/50/60Hz |
| Lifespan | >100000 h | >100000 h | >100000 h |
