P1.9 Ultra HD Indoor Fine Pixel LED Display
Product introduction
1. Standard 16:9 ratio design, ultra HD pixel-to-pixel display;
2. One-piece die casting aluminum ultra-thin cabinet, thickness only 45mm, weight only 5.5kg, single operation easily;
3. Support front/rear installation ,front maintenance, time-saving and convenient installation, wall mounted installation is more advantageous;
4. The module adopts hard-connection design, the signal is more stable, the super magnetic design, and the safety is high;
5. Flash correction data automatic read back, data backup, one-click restore, to achieve automatic correction of the screen body;
6. Low brightness and high gray, brightness color temperature free adjustment, adapt to various brightness for indoor places;
7. Grayscale meets 16bit, wide color gamut, delicate and realistic picture quality;
8. Low radiation, ultra-quiet, wide viewing angle, low power consumption design;
2. One-piece die casting aluminum ultra-thin cabinet, thickness only 45mm, weight only 5.5kg, single operation easily;
3. Support front/rear installation ,front maintenance, time-saving and convenient installation, wall mounted installation is more advantageous;
4. The module adopts hard-connection design, the signal is more stable, the super magnetic design, and the safety is high;
5. Flash correction data automatic read back, data backup, one-click restore, to achieve automatic correction of the screen body;
6. Low brightness and high gray, brightness color temperature free adjustment, adapt to various brightness for indoor places;
7. Grayscale meets 16bit, wide color gamut, delicate and realistic picture quality;
8. Low radiation, ultra-quiet, wide viewing angle, low power consumption design;
9. Support signal and power double backup, automatic switching without black screen.

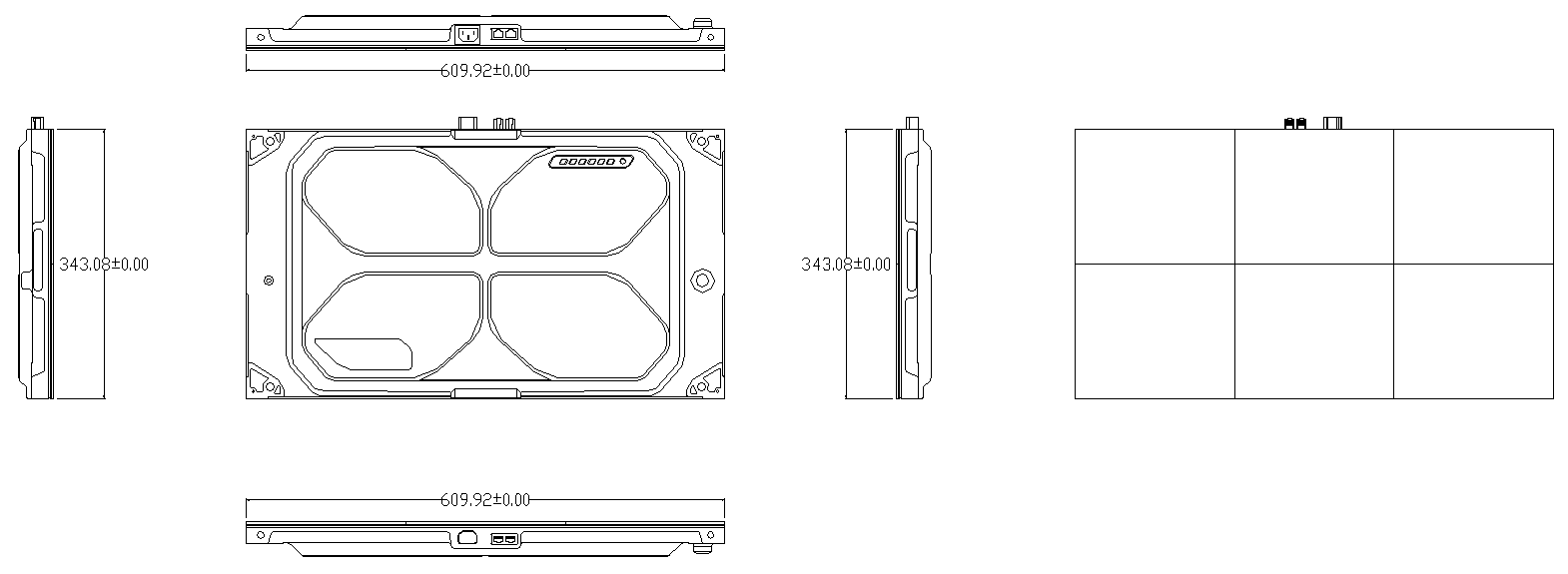

CABINET SIZE
SPECIFICATIONS
TECHNICAL PARAMETER
| PRODUCT NAME | Indoor Fine Pixel LED Display | PRODUCT MODEL | P1.9 |
| PARAMETER NAME | PARAMETER TYPE | PARAMETER VALUE | |
| Module | LED Model | SMD1515 | |
| Pixel Pitch（mm） | 1.906 | ||
| Pixel Configuration | 1R1G1B | ||
| Module Size（mm） | 203.307×171.54 | ||
| Module Resolution（W×H） | 107×90 | ||
| Module Consumption（Watt) | ≤25 | ||
| Module Flatness（mm） | ≤0.1 | ||
| Maintenance Type | Front / Rear | ||
| Cabinet | Cabinet Size（mm) | 609.92×343.08×56（with plate 28mm） | |
| Cabinet Area（㎡） | 0.21 | ||
| Cabinet Resolution（W×H) | 321×180 | ||
| Cabinet Weight（kg) | 5.5 | ||
| Cabinet Flatness（mm） | ≤0.1 | ||
| Cabinet Material | Aluminum Die Casting | ||
| photoelectricity Parameters | Dot to Dot Brightness Calibration | Supported | |
| Dot to Dot Color Calibration | Supported | ||
| Pixel Density（Dots/㎡） | 276127 | ||
| Drive Mode | Constant Current Drive | ||
| Scan Mode (Scan) | 1/45S | ||
| White Balance Brightness （cd/㎡） | ≥650 Adjustable | ||
| Color Temperature（K） | 6500～10000 Adjustable | ||
| Horizontal Viewing Angle （°） | ≥160 | ||
| Vertical Viewing Angle（°） | ≥160 | ||
| Deviation from the center distance of the luminous point | ＜2.5% | ||
| Brightness Consistency | ≥98.5% | ||
| Color Consistency | ±0.0025 Cx,Cy之内 | ||
| Contrast Ratio | 5000:1 | ||
| Electrical parameters | Module Input Volt（V） | DC4.2～5.5 | |
| Module Consumption（W） | ≤25 | ||
| Max Consumption（W/㎡） | ≤650 | ||
| Ave.Consumption（W/㎡） | ≤200 | ||
| Input Voltage | AC100～240V（50～60Hz） | ||
| Performance parameters |
Frame Rate（Hz） | 50&60 | |
| Refresh Rate（Hz） | ≥3840 | ||
| Gray Scale（bits） | 12～16（Typical 13/14） | ||
| Brightness Adjustment | Manual/Automatic | ||
| Apply Parameters | Working Temperature（℃） | -25～45 | |
| Working Humidity（RH） | 8～85% | ||
| Storage Temperature（℃） | -30～65 | ||
| Storage Humidity（RH） | 10～85% | ||
| Pixel Runaway Rate | ≤1/100,000 | ||
| Lifespan（hrs） | ≥100,000 | ||
| MTBF（h） | ≥10,000 | ||
| IP Level（IP） | IP63 | ||
| Protection Features | Overvoltage, Overcurrent, Overload,Undervoltage, Surge, Short Circuit, Open Circuit and Leakage | ||
| Testing Certification | CCC、CB、CE、RoHS，Energy Saving、Environmental Protection | ||
